Home / Products / Concrete Protection Liners

Your location： Home > Products > Concrete Protection Liners

Classify

Concrete Protection Liners

Type：Concrete Protection Liners
Code：

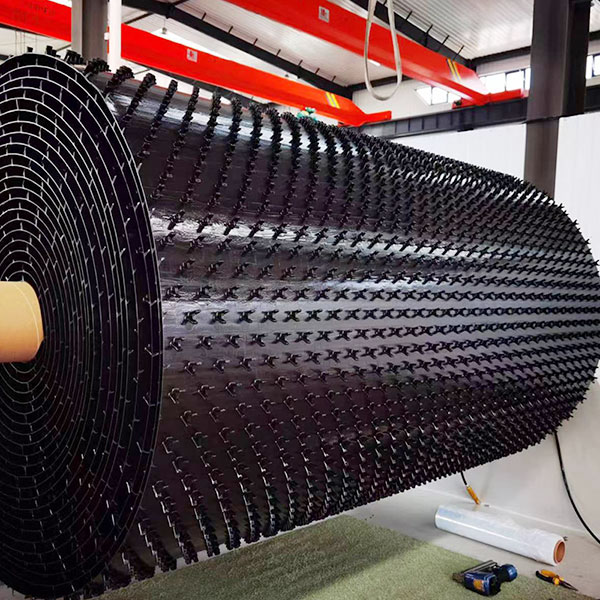

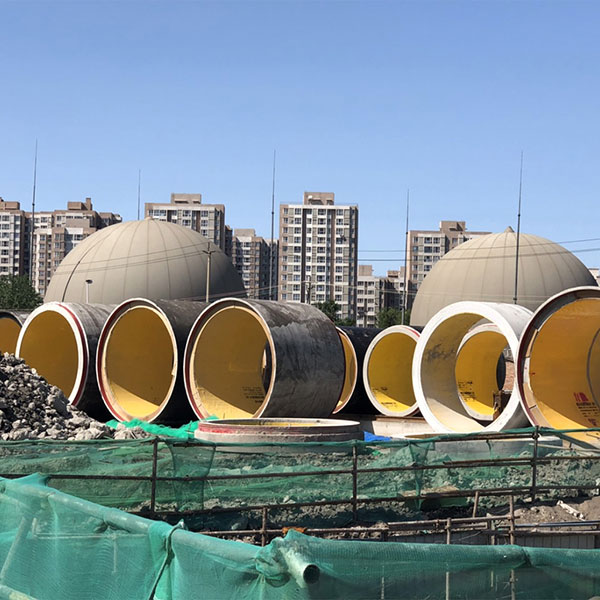

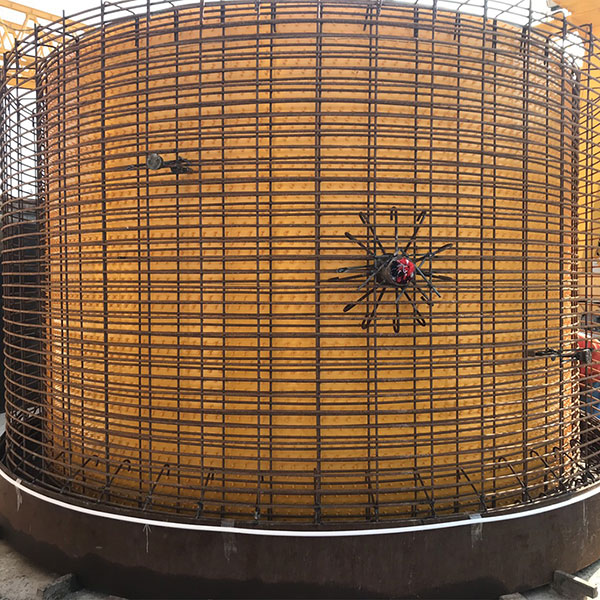

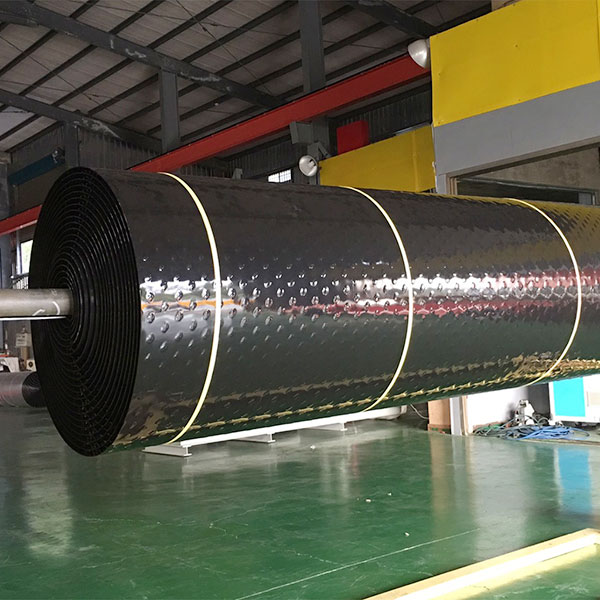

Concrete Protection Liners (CPL) are made of HDPE materials which provide excellent protection of concrete structures from abrasion and corrosion. This product offers a complete, premium-quality selection of plastic liners that provide perfect protection for concrete. The main focus here is on protecting concrete against environmental influences and aggressive or abrasive media, in order to improve the service life of concrete works. The specially designed Ultra Grip V anchoring studs, which are embedded in the concrete, provide a superior mechanical connection between the concrete and the liner.
Features
Effective protection for concrete is ensured by the combination of the benefits of special thermoplastic liners (flexible, ductile, no corrosion) with those of concrete (high strength, high stiffness).
The concrete is effectively protected thus prolonging the building’s service life. Absolute mechanical anchoring and bridging of cracks in concrete, as well as excellent shear and impact strength and the durability of the liners for concrete protection are just a few of the many benefits.
Download product brochure

Hotline：15253487757

Product Description

產品特性

1.堅固耐用免維護
PE板通過錨固體與混凝土結合為一體，抗拉拔強度超過40噸/平方米，永不脫落，具有優良的抗沖擊和抗剪切能力，使用壽命超過50年。
2.優良的耐腐蝕性能
PE材料除了個別溶劑外幾乎可以抵抗所有的酸，堿，鹽和其他化學物質的腐蝕。使用了防護板可以讓普通混凝土材料，與塑料有同等的防腐性能。
3.優良的防滲性能
PE材料吸水率低，防滲能力強。大于300％的斷裂伸長率，有效封閉可能出現的各種細微裂紋。
4.使用溫度范圍廣，抗紫外線
-60℃?60℃均可使用，換用耐溫?zé)崴苄运芰夏蜏乜蛇_100℃以上。添加抗紫外線材料可在強紫外線環境下使用。
5.施工靈活，適應性廣
即可在混凝土澆筑時同時完成保護板的安裝，也可以后期加裝。幾乎所有外層需要防護的建筑物都可以使用。

產品規格

型號 A(H: 錨固高度; D:板材厚度)
規格型號	A 1.5	A 2	A 2.5	A 3	A 4	A 5	A 6
H (mm)	13	13	13	13	13	13	13
D (mm)	1.5	2	2.5	3	4	5	6
型號 B(H: 錨固高度; D:板材厚度)
Items		B 2	B 2.5	B 3	B 4	B 5	B 6
H (mm)		19	19	19	19	19	19
D (mm)		2	2.5	3	4	5	6
*寬度：2000mm,1960mm with stud* 長度：可定制顏色：白、黑、黃、藍、紅、灰或定制顏色包裝：卷/板**
